FEATURED PRODUCTS
JET 3 LEVEL BENTCH MOUNTED AIR PLUG GAUGE
DESCRIPTION
RANGE: 10 MM TO 250 MM. hard chrome plated through / blind / step bore NOTE: as per customer special requirement d2 material.
BENTCH MOUNTED AIR SNAP GAUGE
DESCRIPTION
RANGE: 10 MM TO 250 MM it inspect ovality, taper it save checking time, ease to use & user frendly.
OFFERED WITH SNAP GAUGE WITH JET FIXED IN CARBIDE TIP.
JET STEEL AIR PLUG GAUGE.
DESCRIPTION
RANGE: 2 MM TO 250 MM. hard chrome plated through / blind / step bore
NOTE: as per customer special requirment d2 material.
AIR SNAP GAUGE
DESCRIPTION
RANGE: 10 MM TO 250 MM it inspect ovality, taper it save checking time, ease to use & user frendly.
OFFERED WITH SNAP GAUGE WITH JET FIXED IN CARBIDE TIP.
JET CARBIDE AIR PLUG GAUGE
DESCRIPTION
RANGE: 10 MM TO 50 MM. THROUGH / BLIND / STEP BORE NOTE: AS PER CUSTOMER SPECIAL REQUIRMENT ANY MAKE.

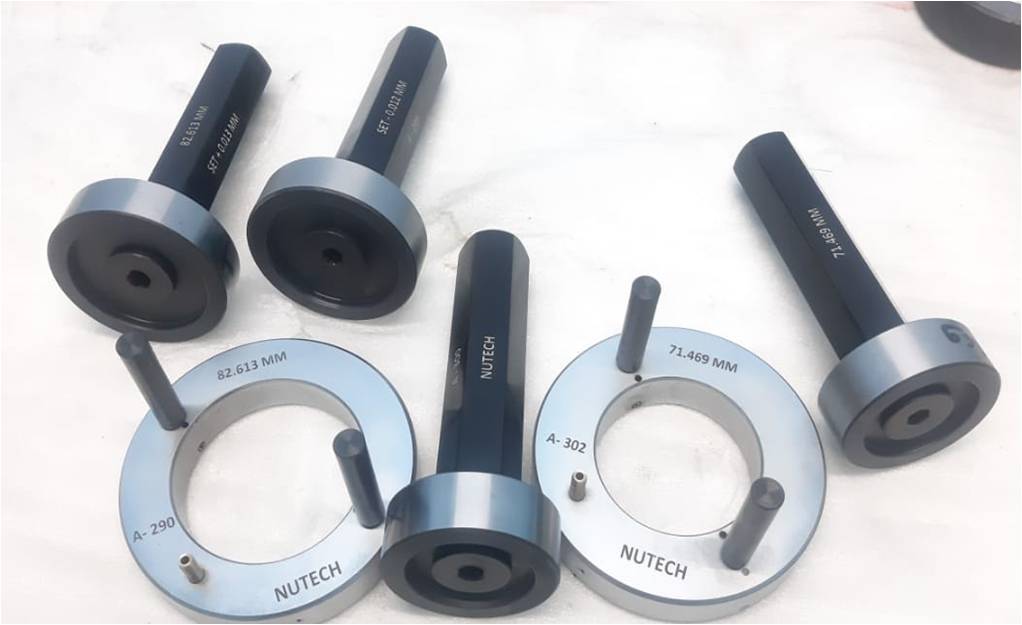

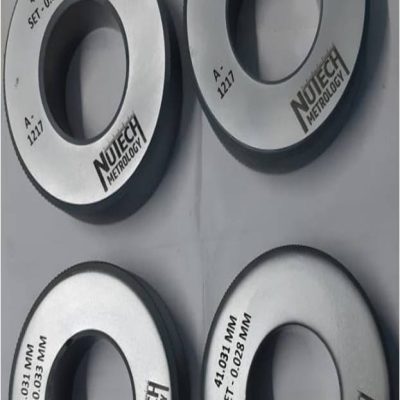

MASTER SETTNG RING
DESCRIPTION
REQUIRED FOR SETTING RING FOR CALIBRATION & BORE GAUGE SETTING

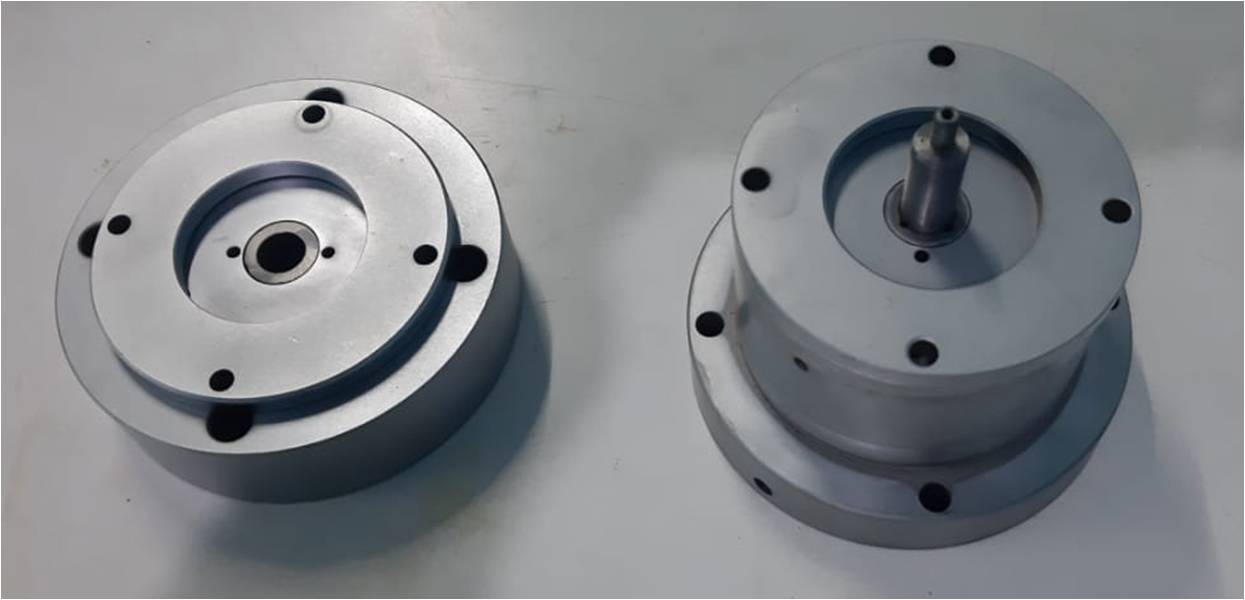

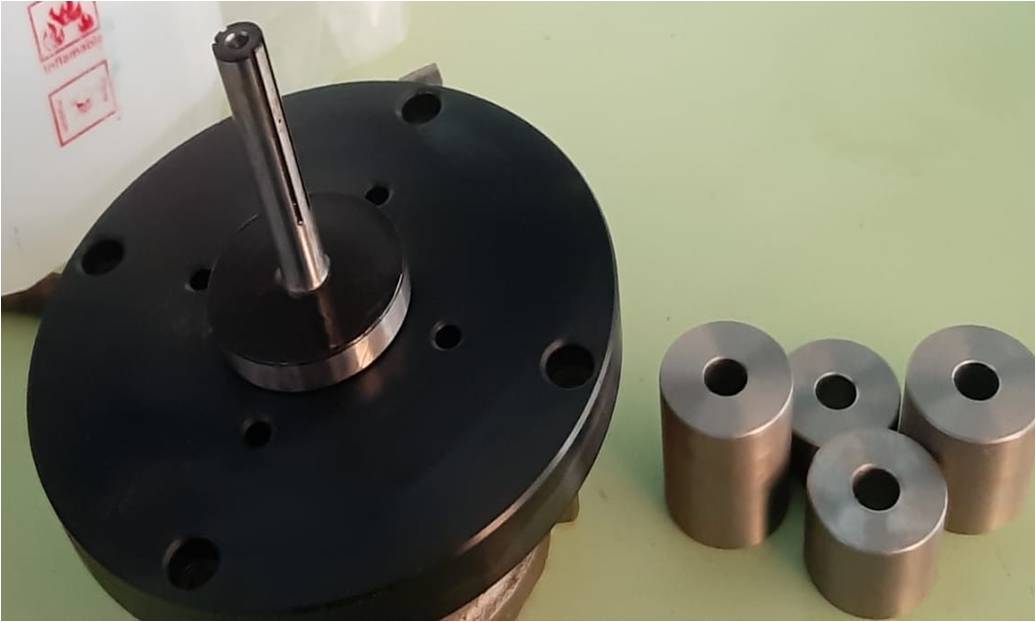

SPECIAL BENTCH MOUNTED AIR PLUG GAUGE
DESCRIPTION
SUITABLE FOR SMALL LAND REQUIREMENT
FOR ANY MAKE.

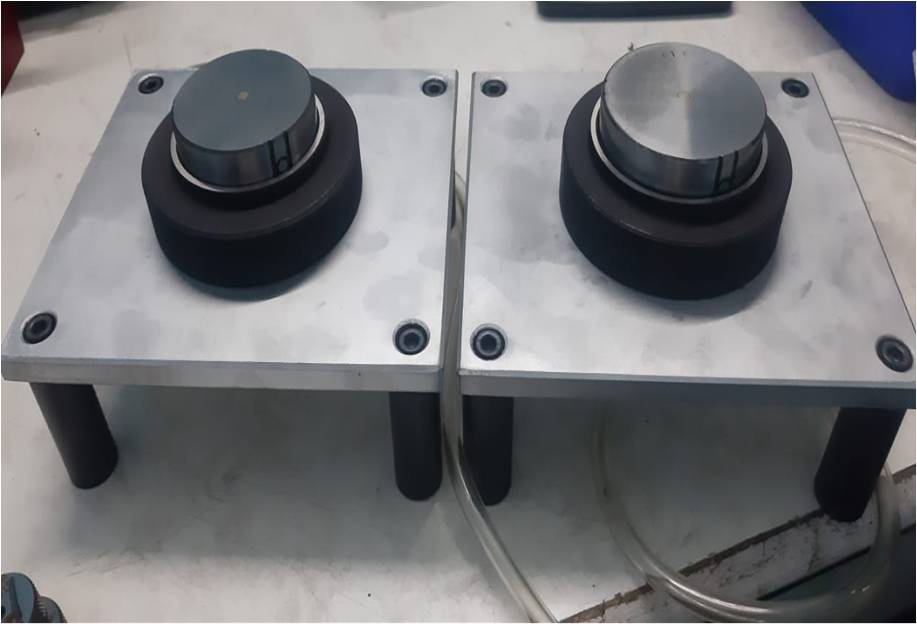

BENTCH MOUNTED SPECIAL CARBIDE AIR RING GAUGE
DESCRIPTION
FOR SPECIAL PARTS 2 JET 2 LEVEL / 3 LEVEL 3 JET 2 LEVEL / 3 LEVEL / 4 LEVEL 4 JET 2 LEVEL / 3 LEVEL / 4 LEVEL ANY MAKE SUITABLE REPEATABILITY : WITHIN 1 MICRON
AIR RING GAUGE
DESCRIPTION
JET AIR RING TO CKECK OUTSIDE DIAMETER, TAPER & OVALITY. 3 jet air ring gauge for detecting lobbing effect @ 120 degree can be supplied with tungsten carbide wear ring on request air ring gauge above ø150 mm availabe on request.
MULTIGAUGING FIXTURE FOR INNER RING
DESCRIPTION
vTOTAL HEIGHT / PARALLESIUM
vOUTER DIAMETER
vINNER DIAMETER
OVALITY

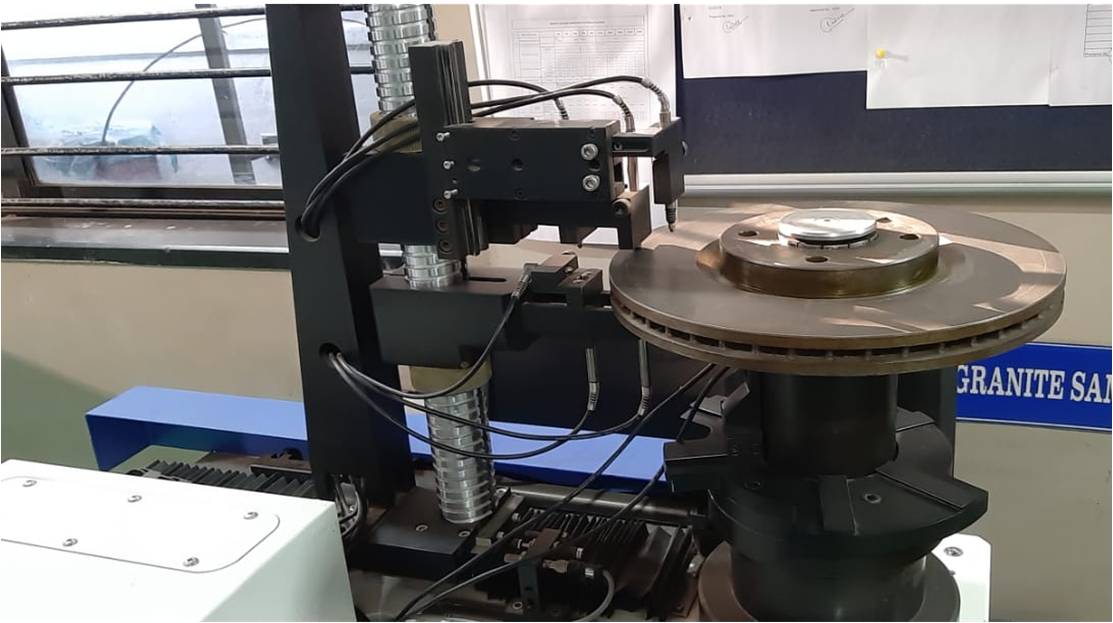

BRAKE DRUM RUNOUT CHECKING FIXTURE
DESCRIPTION
IT CHECK PARALLESIM, RUNOUT, INTERNAL & OUTER DIAMETER.
SPECIAL AIR FIXTURE
DESCRIPTION
vTO CHECK INETRNAL DIAMETER, OVALITY & TAPER.
vIT REDUCES INSPECTION TIME.
Air Gauge Unit
DESCRIPTION

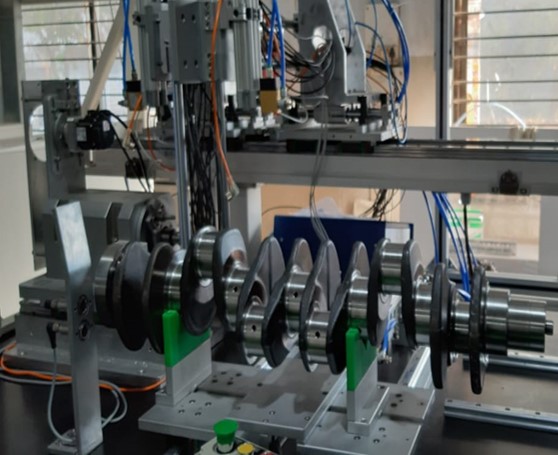

MULTIGAUGING FOR CRANK SHAFT
DESCRIPTION
SPECIAL AIR PLUG GAUGE
DESCRIPTION
SPECIAL LONG BUSH CHECKING AIR PLUG GAUGE.
SPECIAL FIXTURE
DESCRIPTION
SPECIAL AIR SNAP FIXTURE
DESCRIPTION

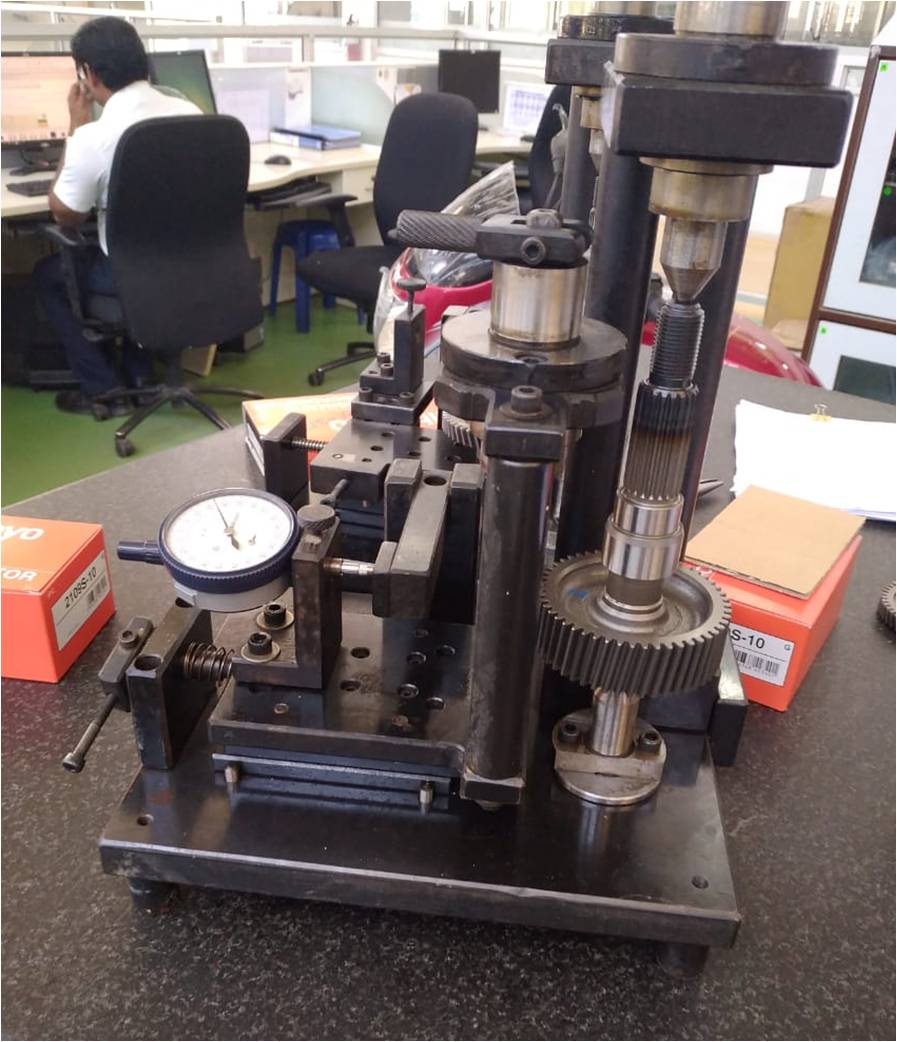

GEAR RUNOUT CHECKING FIXTURE
DESCRIPTION
IT CHECK RUNOUT OF GEAR

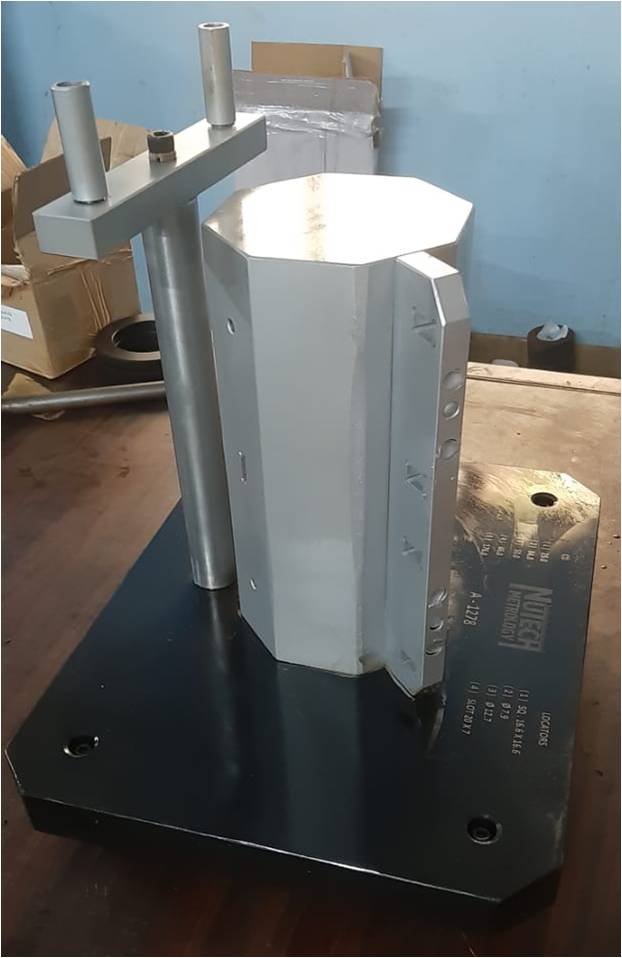

RELATION GAUGE FOR OCTAGONAL TUBE
DESCRIPTION
vINSPECTION OF ALL CENTER DISTANCE
vTOATL HEIGHT

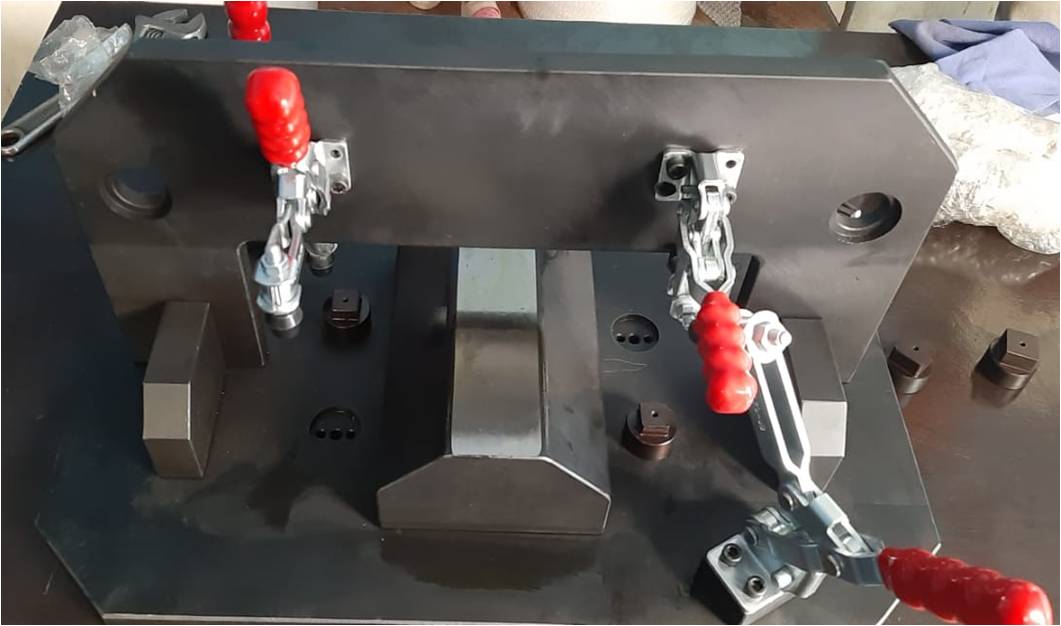

WELDING FIXTURE FOR SHEET METAL PARTS
DESCRIPTION
USED FOR MANUAL WELDING OF 2 SHEET TOGETHER.

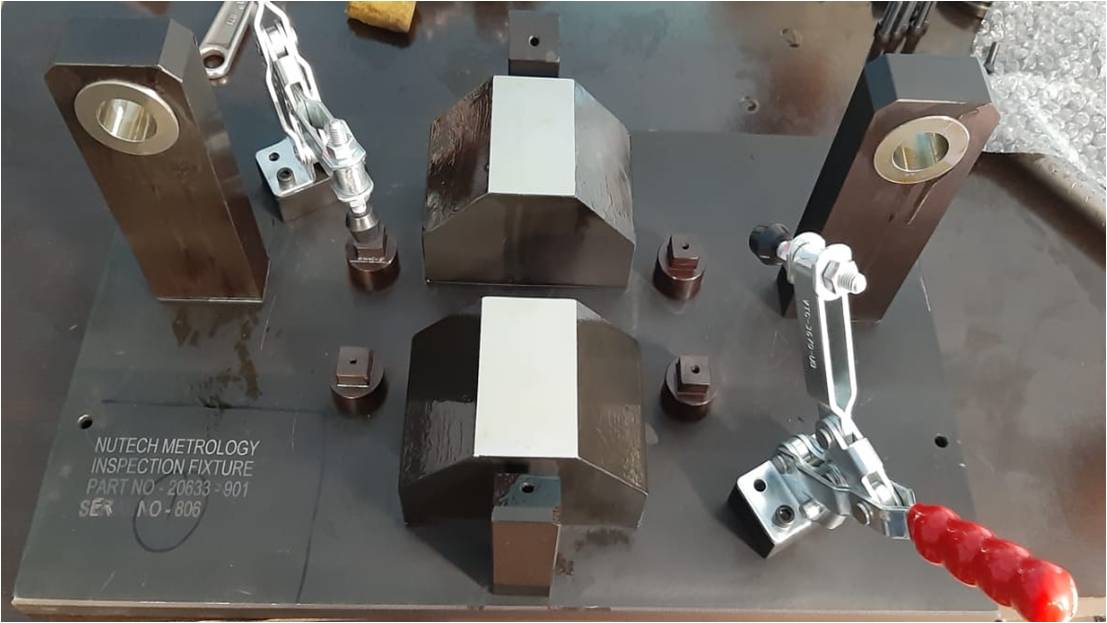

INSPECTION FIXTURE
DESCRIPTION

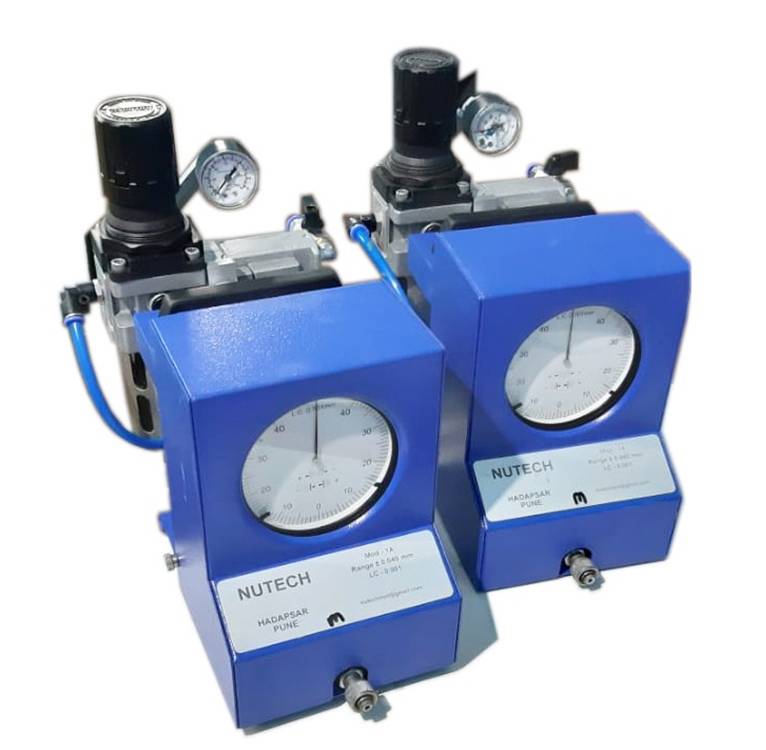

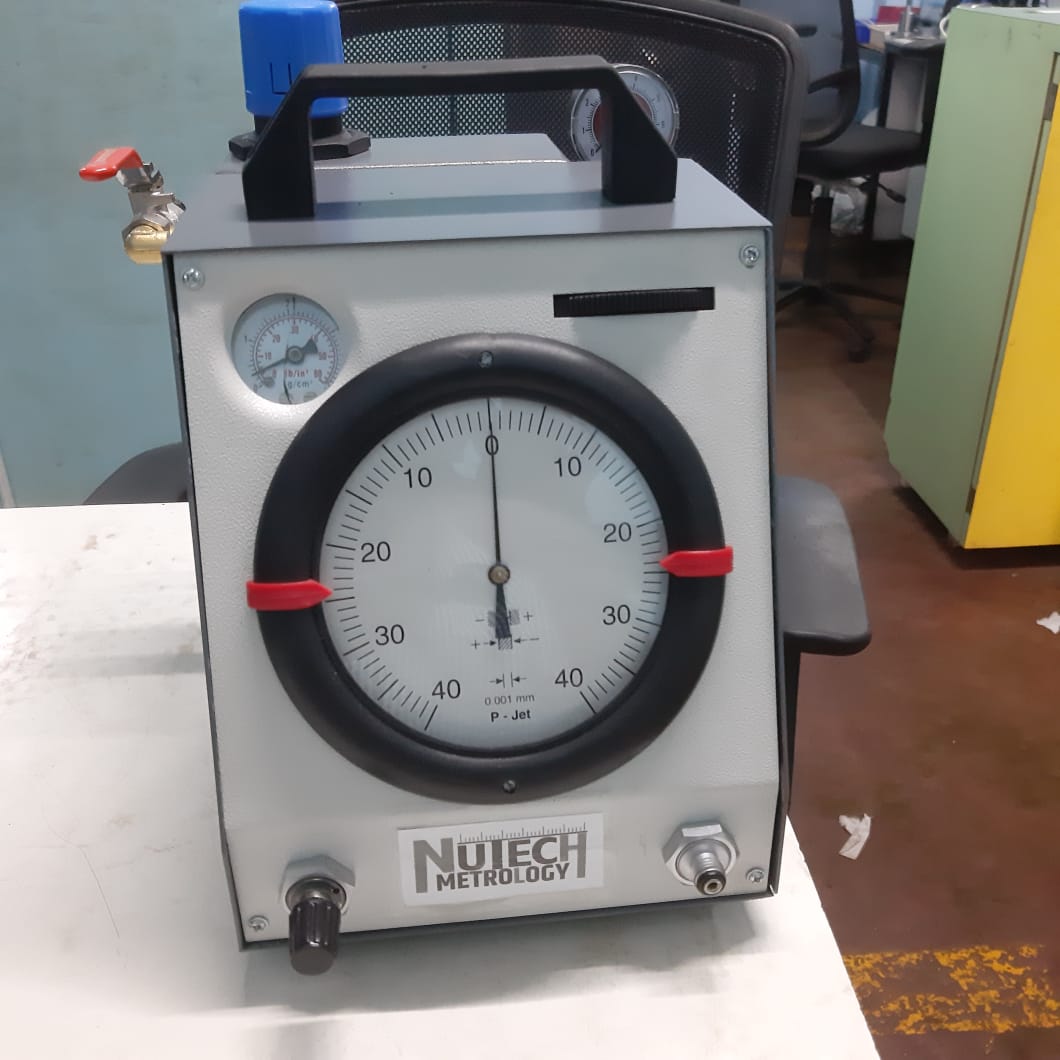

AIR GAUGE UNIT
DESCRIPTION
HIGH PRESSURE SYSTEM – high speed of response & cleaning of gauging area ensures accurate reading of size, taper & ovality at a time.
NON-CONTACT GAUGING – long life due to minimal frictional wear.
TWO SETTING MASTERS – ensures correct magnification of reading at all times.

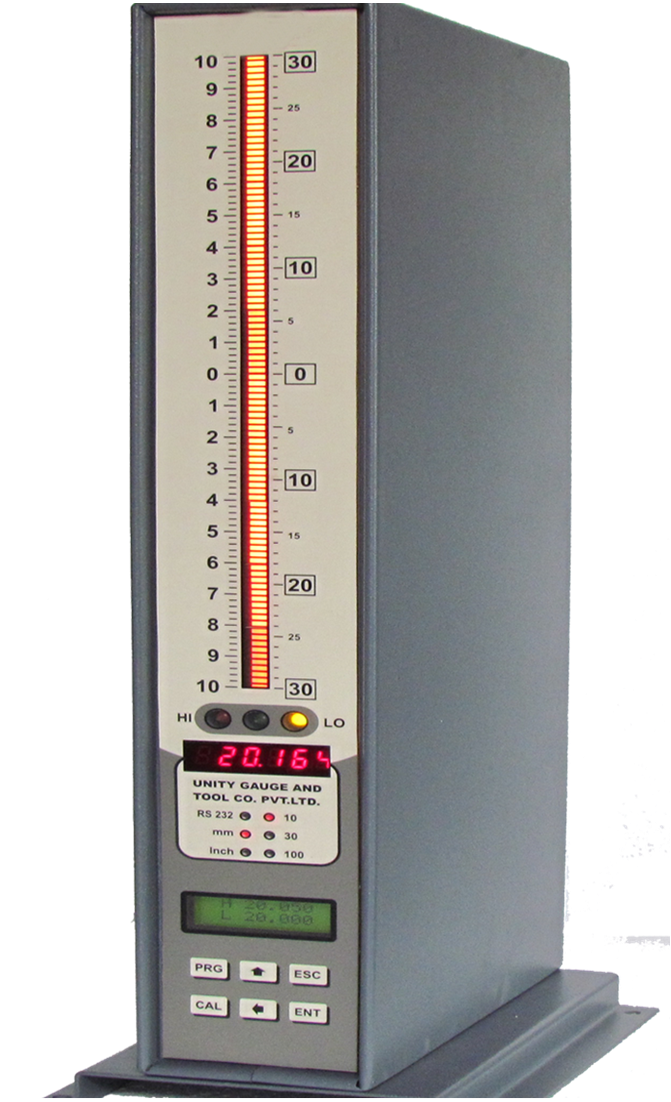

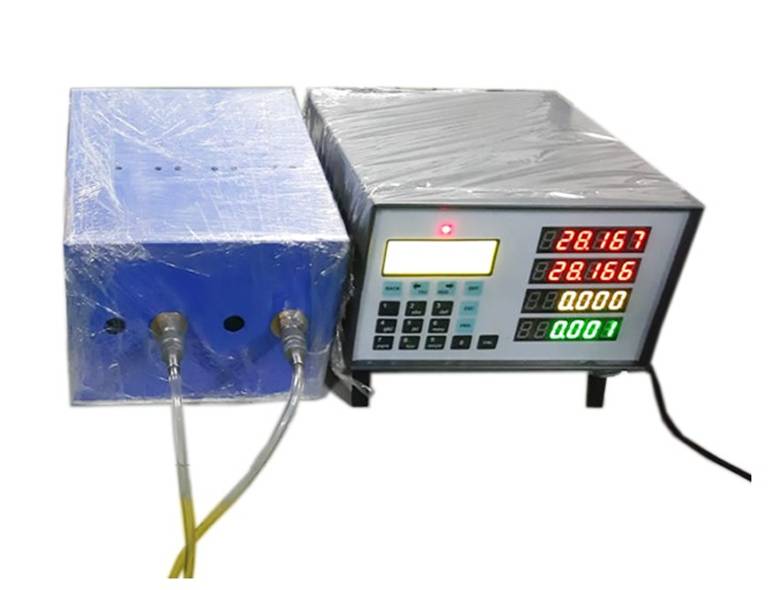

AIR ELECTRONIC COLUMN UNIT
DESCRIPTION
vair electronic convertor complete with air drier & filter set vertical bar graph (tri colour: red / umber / green) & red six digit display absolute / comparative measurement vauto calibration facility metric / inch measurement static / dynamic measurement vrs 232 output relay output 24v single tricolour led for component tolerance status vcnc auto correction facility

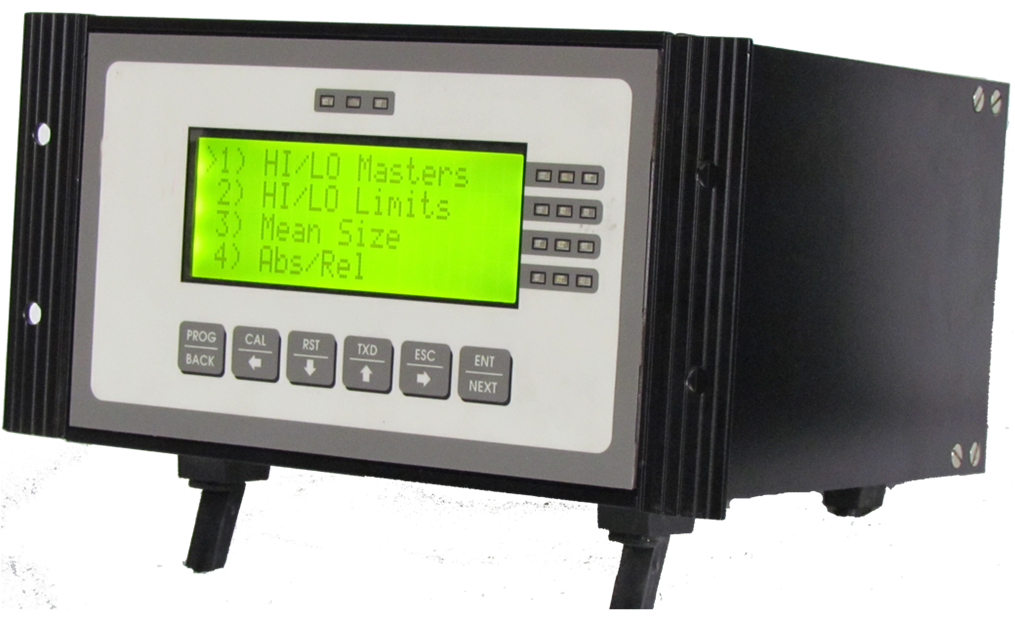

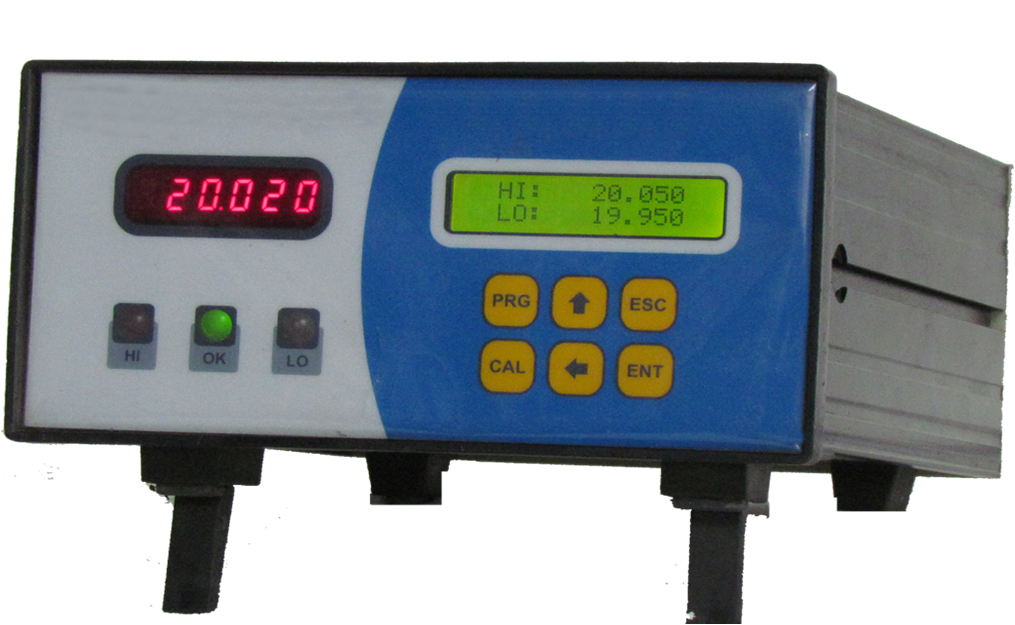

DISPLAY UNIT
DESCRIPTION
TRI COLOUR SIX DIGI DISPLAY (OK/ NOT OK / REWORK) ABSOLUTE / COMPARATIVE MEASUREMENT AUTO CALIBRATION FACILITY METRIC / INTCH MEASREMENT STATIC / DYNAMIC MEASUREMENT RS 232 OUTPUT RELAY OUTPUT 24V
DISPLAY UNIT
DESCRIPTION
tri colour six digi display
(ok/ not ok / rework)
absolute / comparative measurement vauto calibration facility
metric / intch measrement static / dynamic measurement
rs 232 output relay output 24v

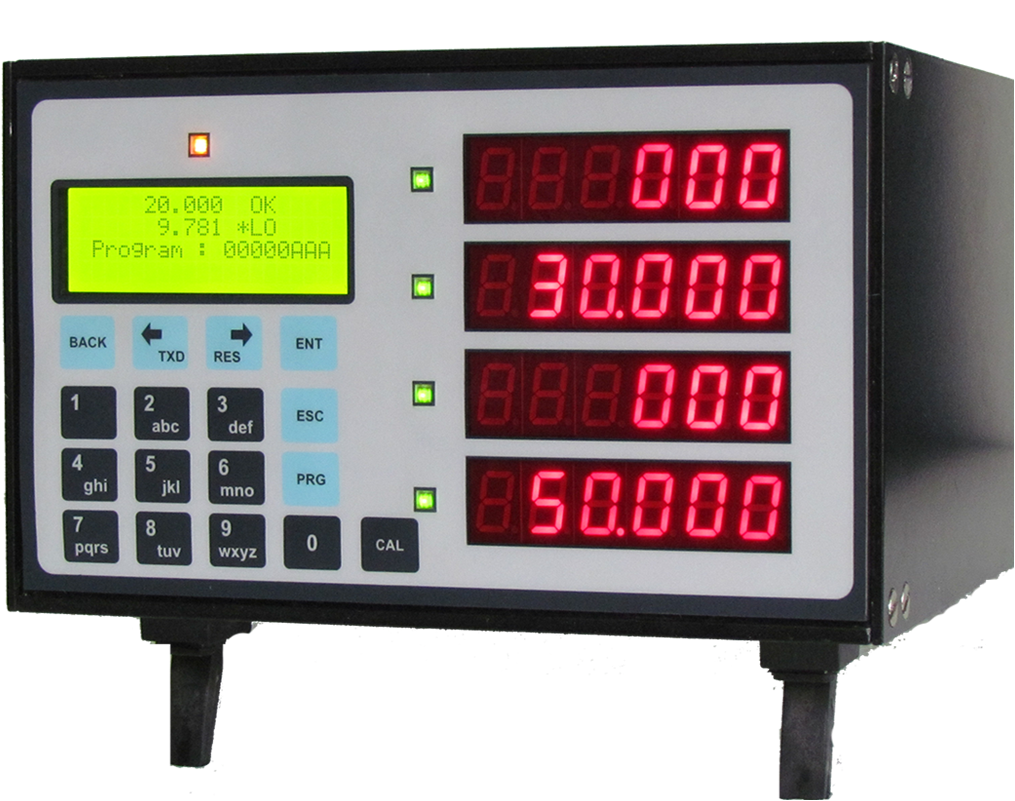

4 DISPLAY UNIT
DESCRIPTION
vTRI COLOUR SIX DIGI DISPLAY (OK/ NOT OK / REWORK) ABSOLUTE / COMPARATIVE MEASUREMENT AUTO CALIBRATION FACILITY METRIC / INTCH MEASREMENT STATIC / DYNAMIC MEASUREMENT RS 232 OUTPUT RELAY OUTPUT 24V

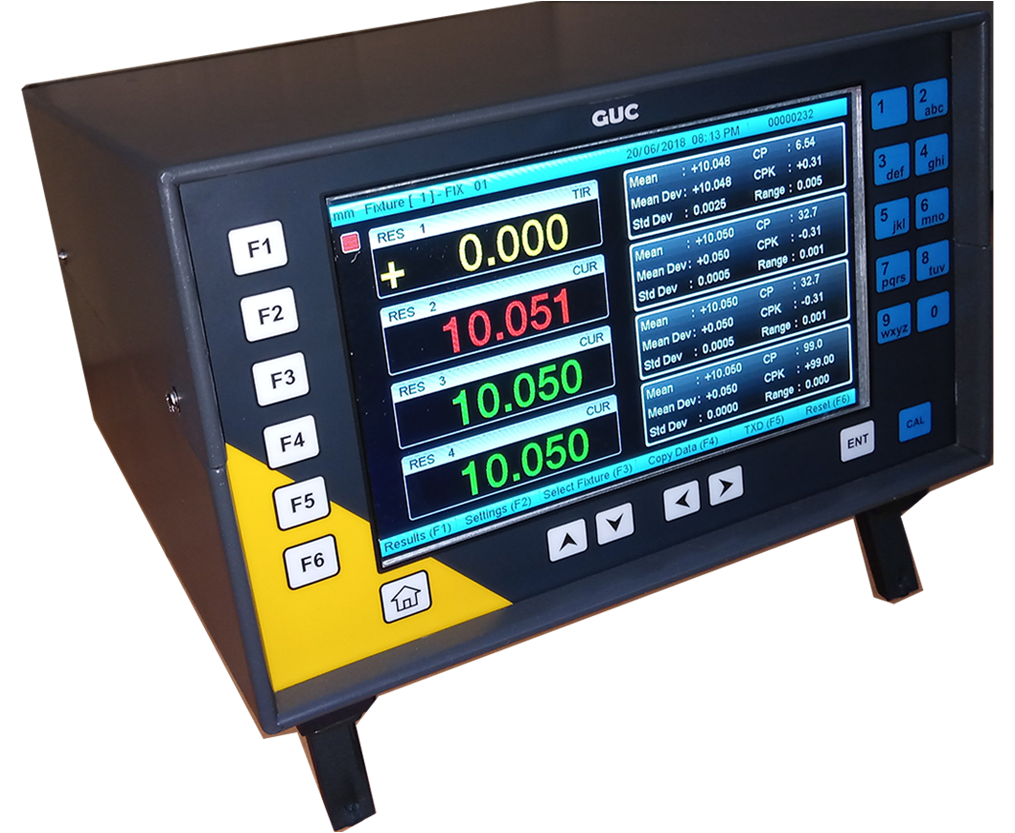

GRAPHICAL DISPLAY UNIT
DESCRIPTION
lvdt probe selection provided with 8 results of various combination. spc (statistical process control) facility for monitor a process for confirming product with minimum waste. 7” graphical colour display. 30 different fixture programs with user programmable fixture name & result name. interface usb plug port vinterfaction with standard pc usb keyboard interface pen-drive interfacing
SINGLE DISPLAY UNIT
vTRI COLOUR SIX DIGI DISPLAY (OK/ NOT OK / REWORK)
vABSOLUTE / COMPARATIVE MEASUREMENT
vAUTO CALIBRATION FACILITY
vMETRIC / INTCH MEASREMENT
vSTATIC / DYNAMIC MEASUREMENT
vRS 232 OUTPUT
vRELAY OUTPUT 24V
